Real archive data, real events, no synthetic series. Every screenshot below comes from a live SciQLop session; the products, intervals and features behind each one are listed in the sources manifest.
Magnetopause crossing, five plots, one time axis
MMS1 on the dayside magnetopause, the Burch et al. 2016 electron diffusion region event of 2015-10-16. FPI-DIS burst omni spectrum, ion density, bulk velocity, temperatures and FGM burst B GSM, stacked on a shared time axis.
Orbit projections with linked time markers

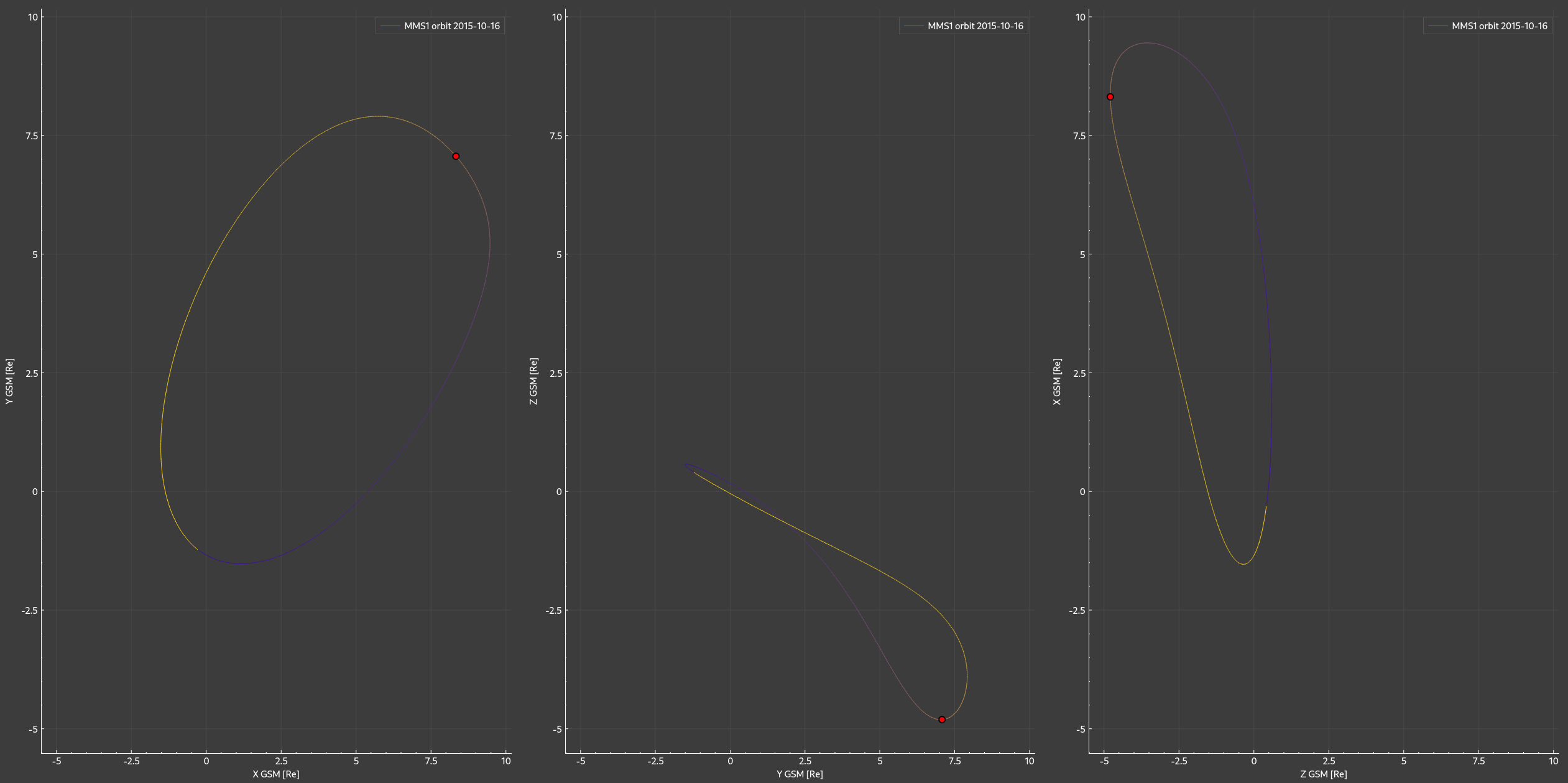

A full day of MMS1 position in XY, YZ and ZX projections, coloured by time. The red markers are one linked time marker at the 13:05:42 crossing, shown on all three projections at once.
Background subtraction on a type II radio burst

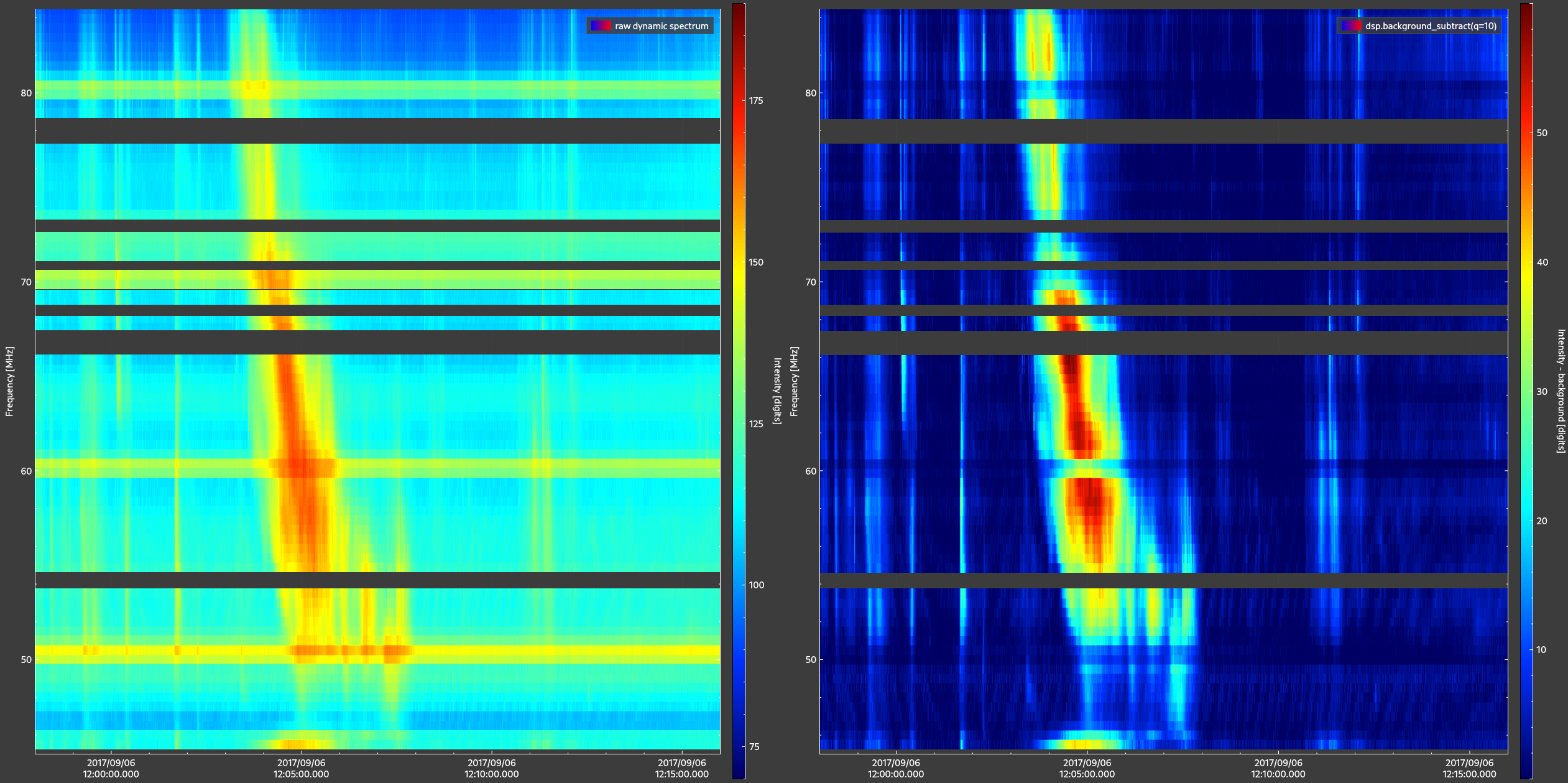

The type II burst from the X9.3 flare of 2017-09-06, e-CALLISTO station HUMAIN. Left: raw spectrum,
dominated by instrumental gain bands. Right: the same data after dsp.background_subtract(q=10) (coming in v0.13; see the DSP toolbox tutorial for the v0.12 way).
Waterfall: the drift is the lag

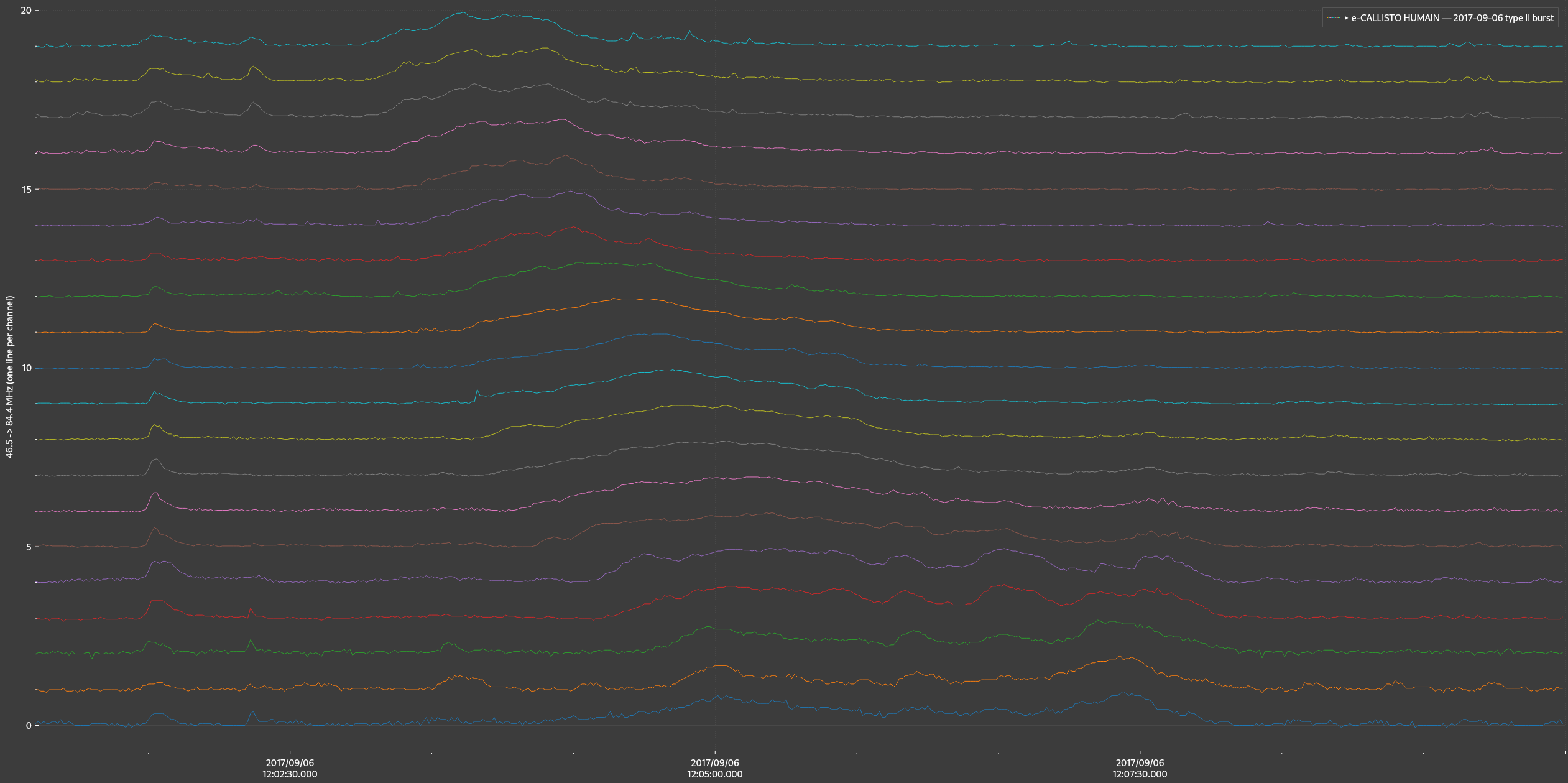

Same burst as a 20-channel waterfall. The peak walks later going down the stack. That lag is the type II frequency drift.
Two plasma regimes in one 2-D histogram

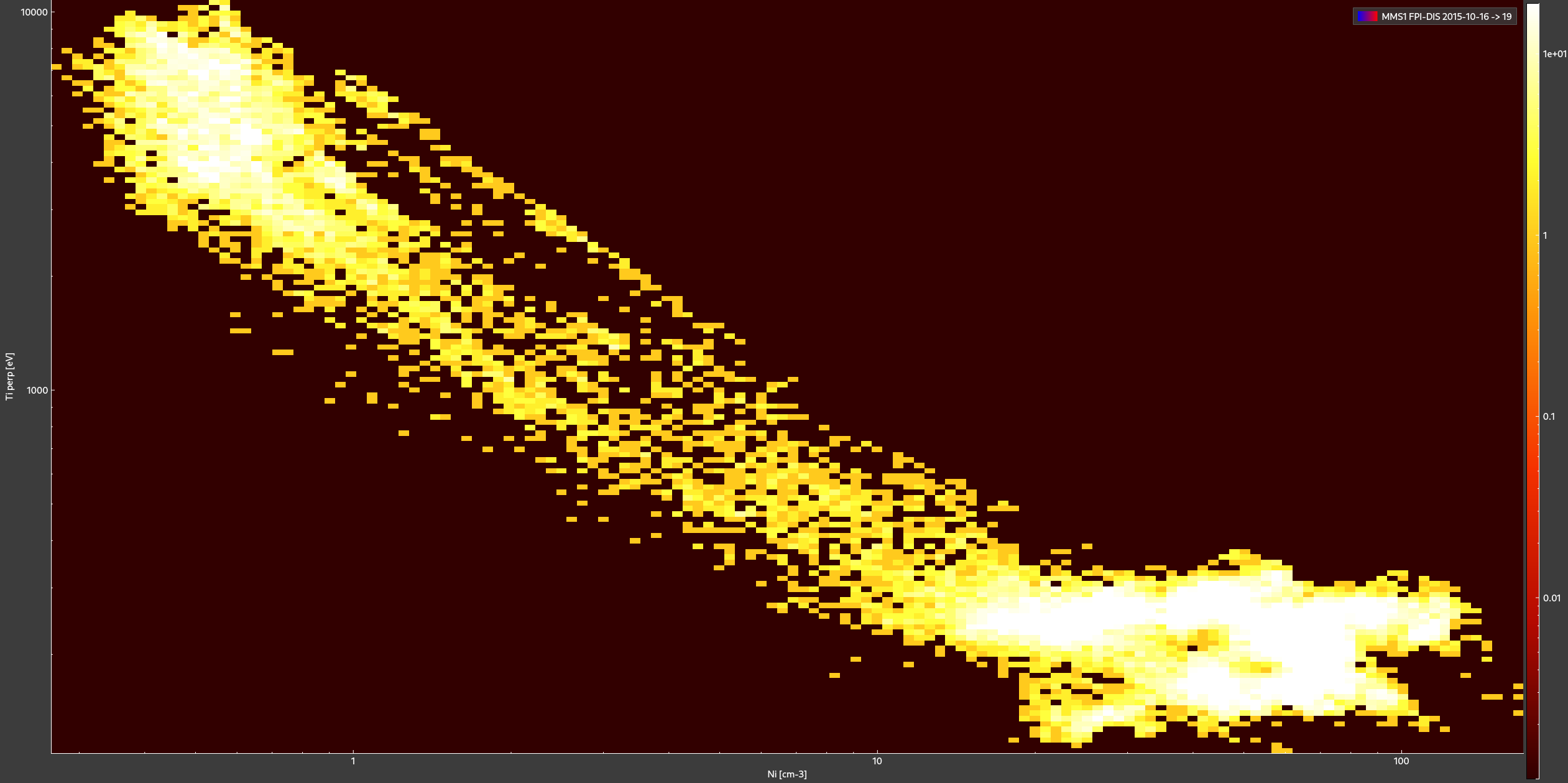

Three days of MMS1 ion density against perpendicular temperature, log bins on both axes. Hot tenuous magnetosphere upper left, cold dense magnetosheath lower right, joined by the boundary-crossing track.
Data-aware annotation layers

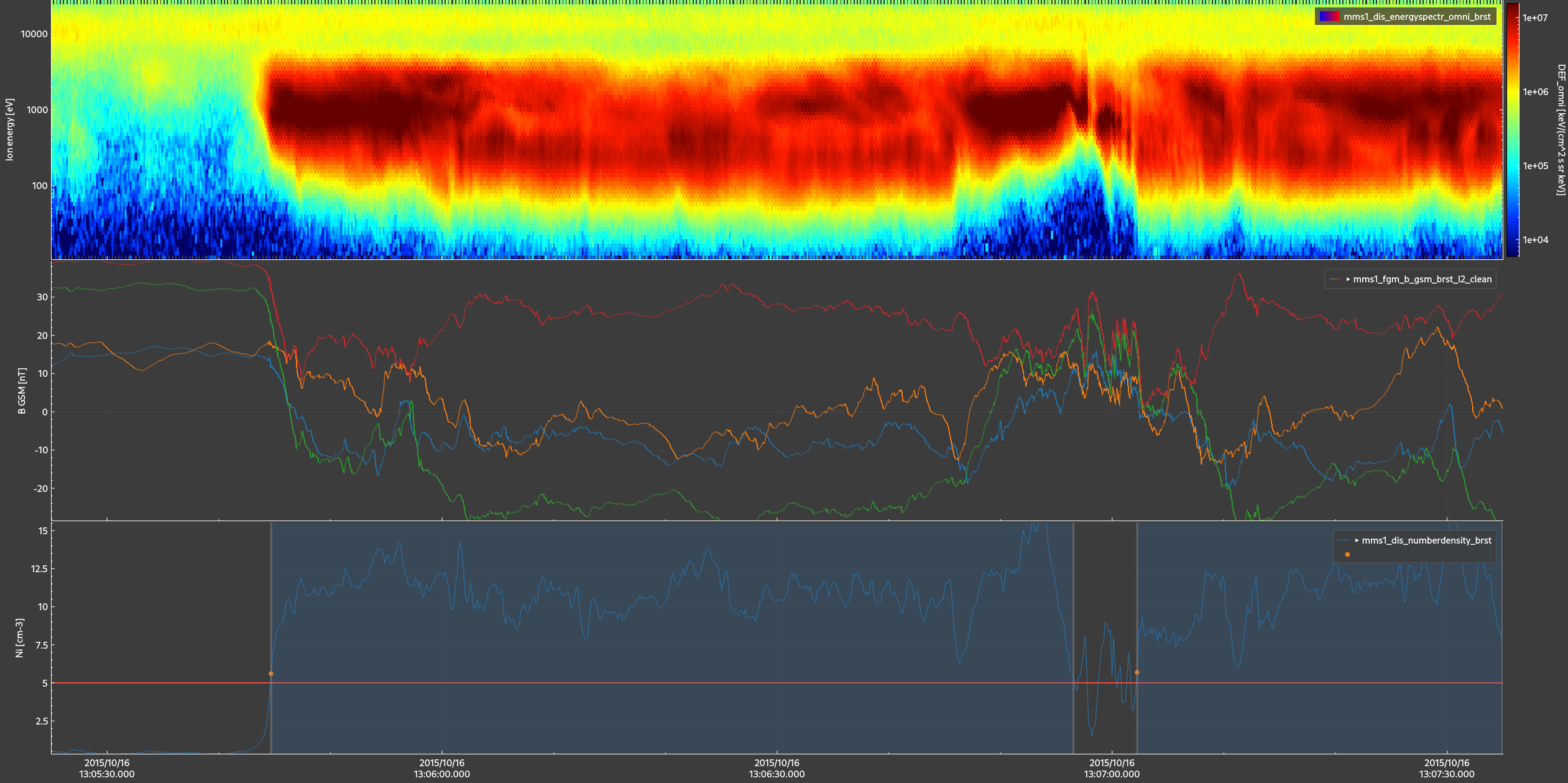

A detectors/magnetosheath layer: blue spans where ion density exceeds a threshold, orange markers at the
crossings, and the threshold itself as a red line you can drag.
Parameterised virtual products

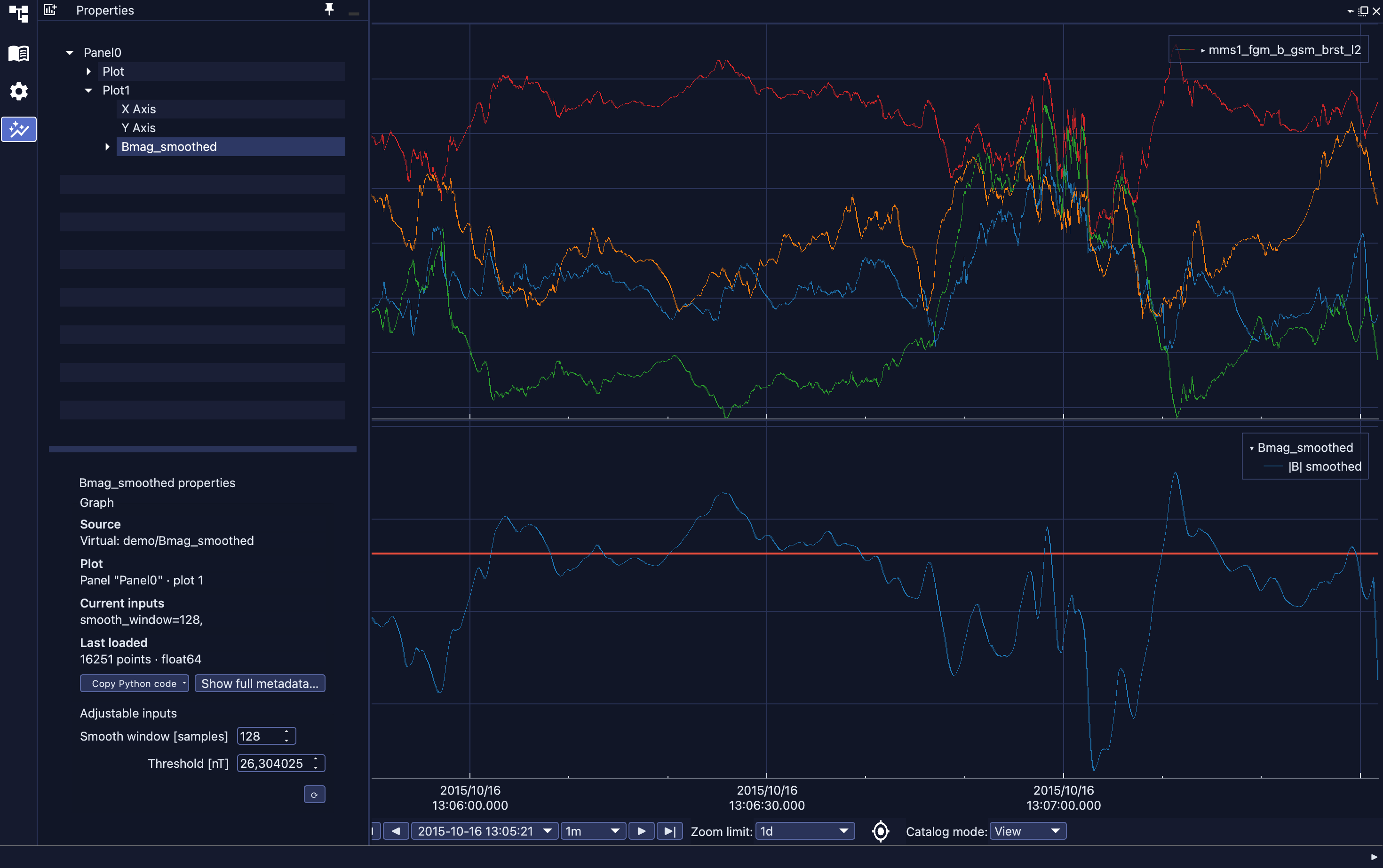

A virtual product with two knobs, declared with Annotated[..., Knob(...)]. The Inspector exposes them as
labelled controls; the threshold knob is drawn on the plot as a movable line.
Catalog overlays

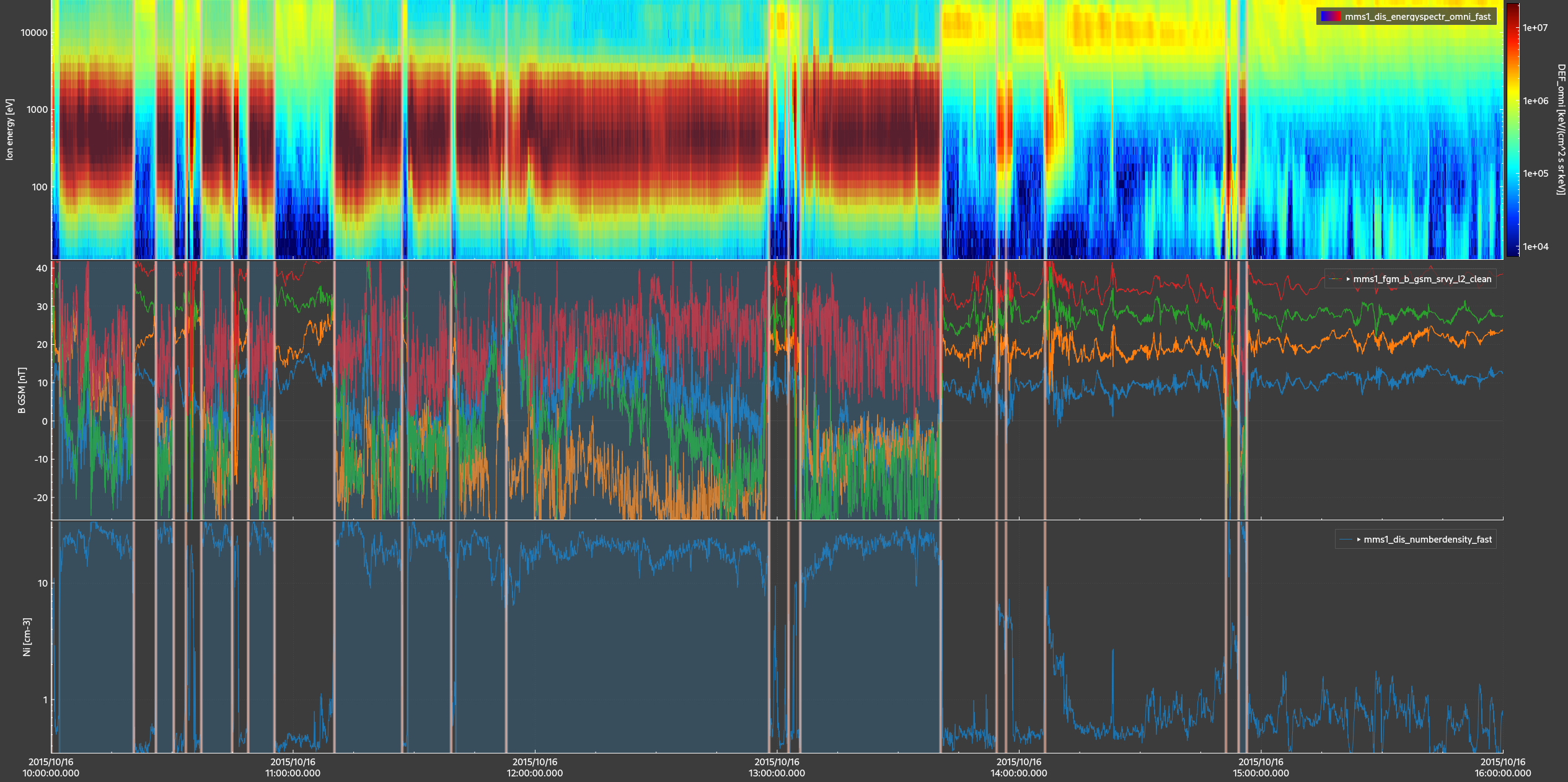

Two colour-coded catalogs over three plots. MMS1 sits in the magnetosheath until about 13:40, then enters the magnetosphere. The events were derived from the data, not hand-drawn.
Publication-style annotations
Curved arrows, text and vertical lines from the graphic-primitives API, on the same crossing.
Four palettes

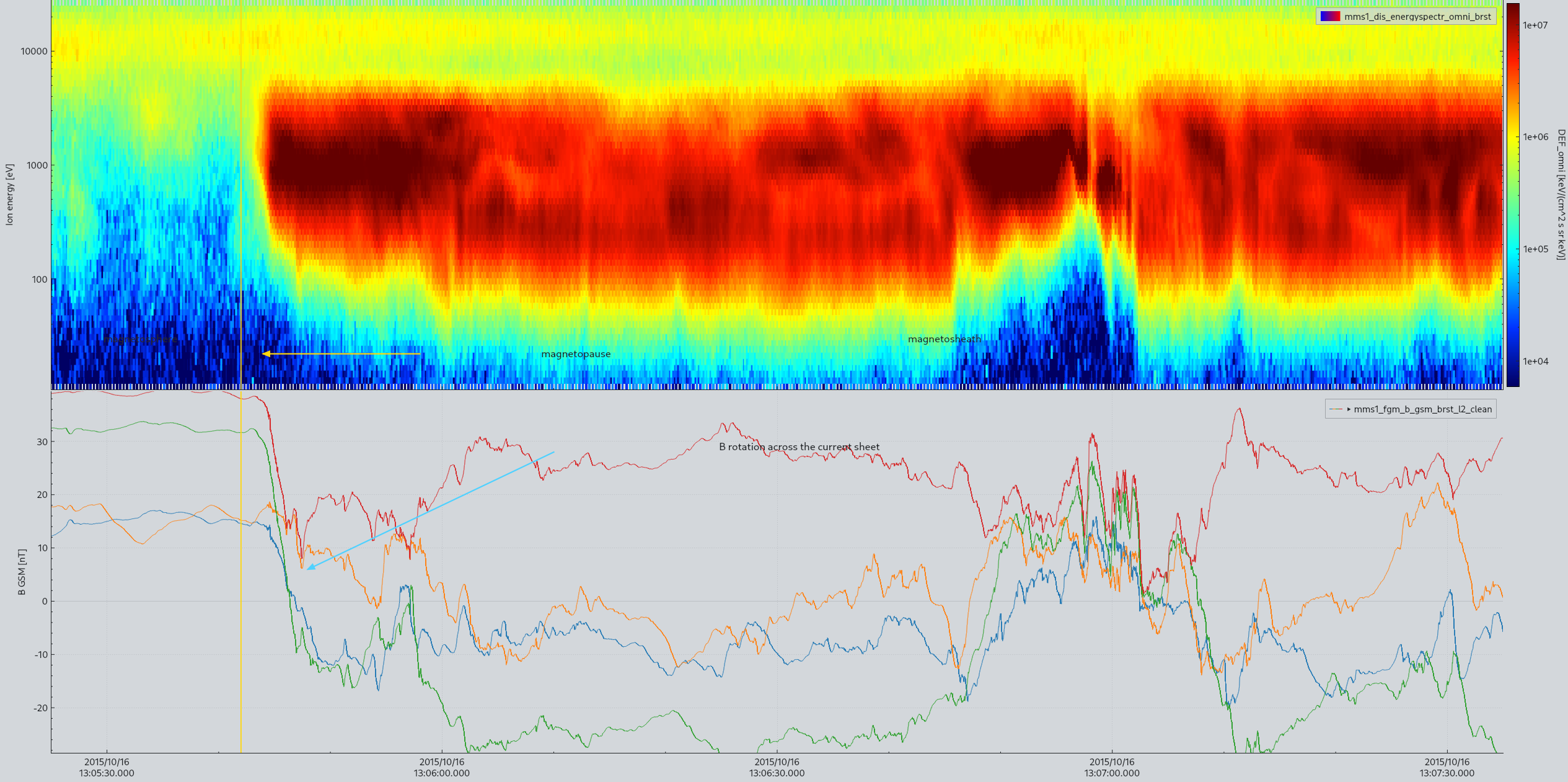

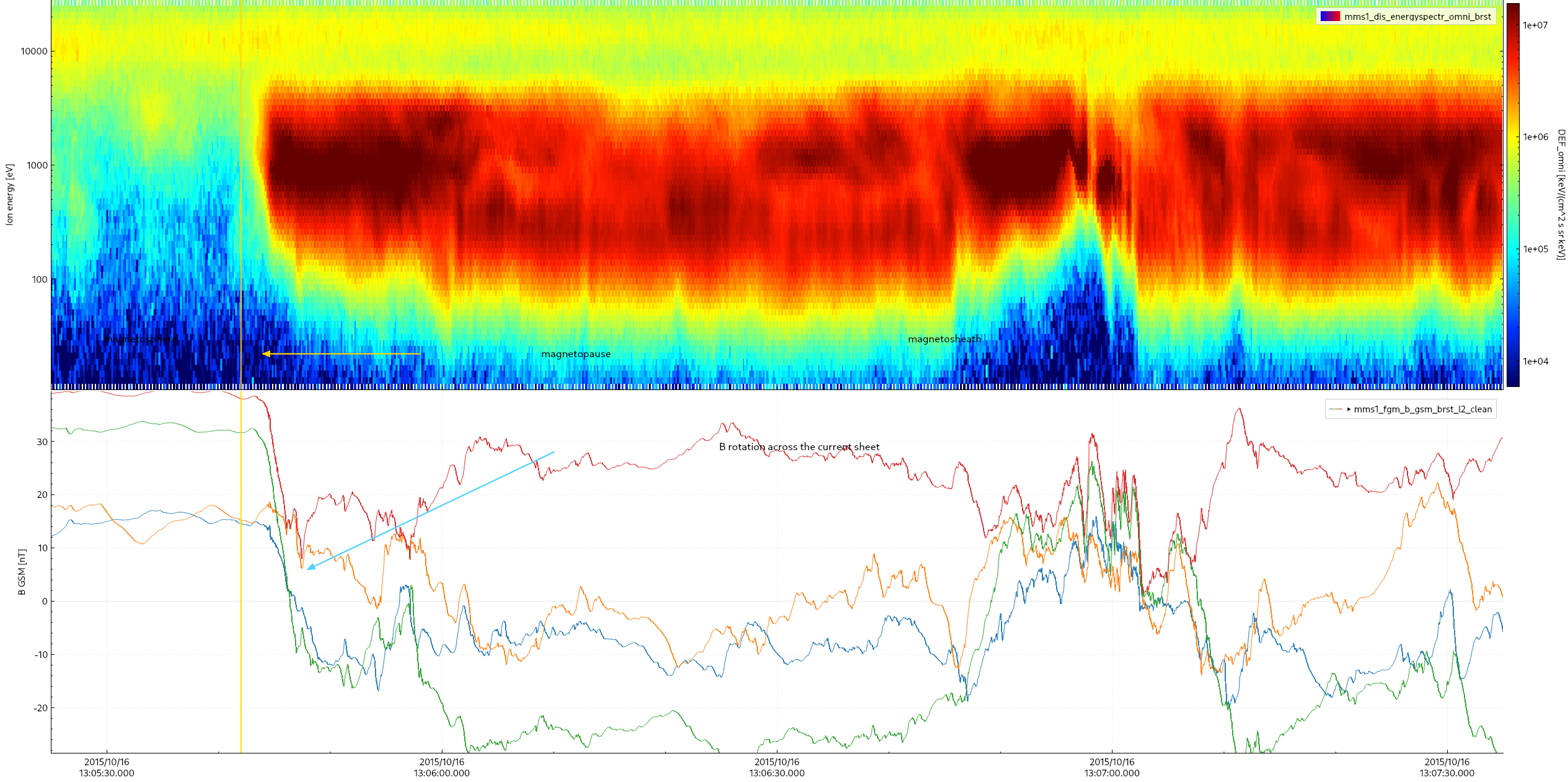

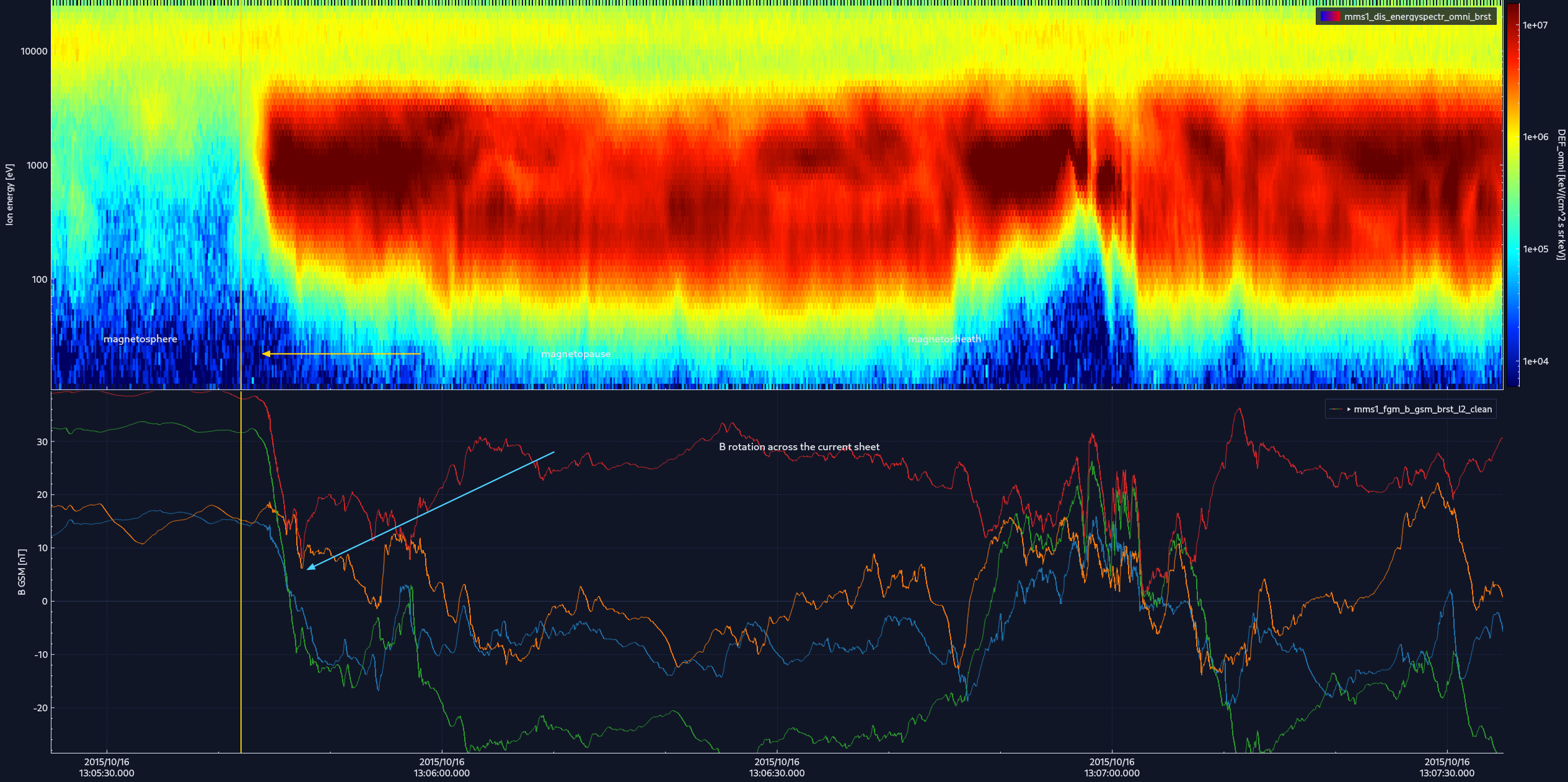

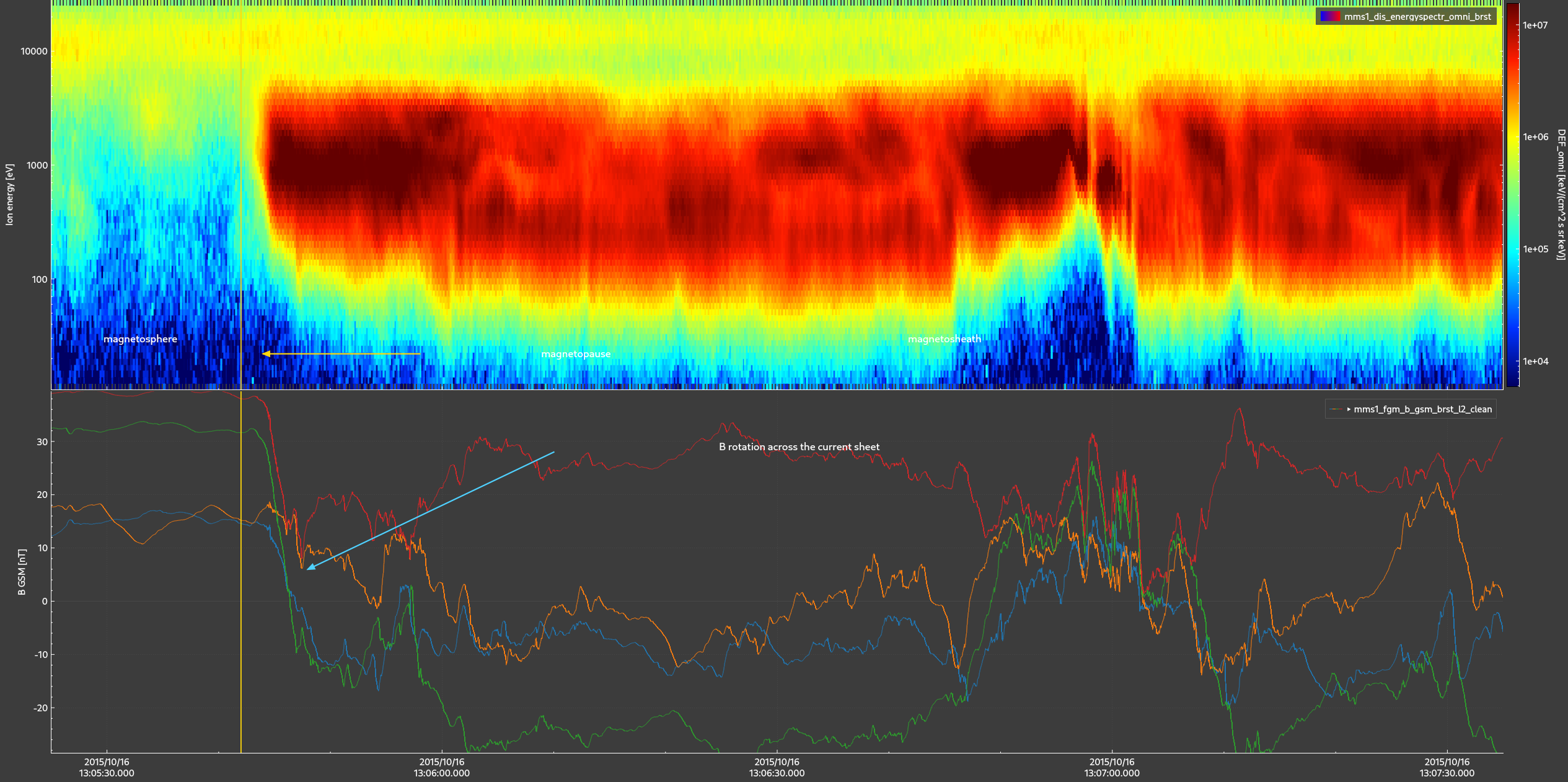

The same panel under the light, dark, neutral and space themes, switched at runtime with
themes.apply_theme.
Coming in v0.13
AI assistant

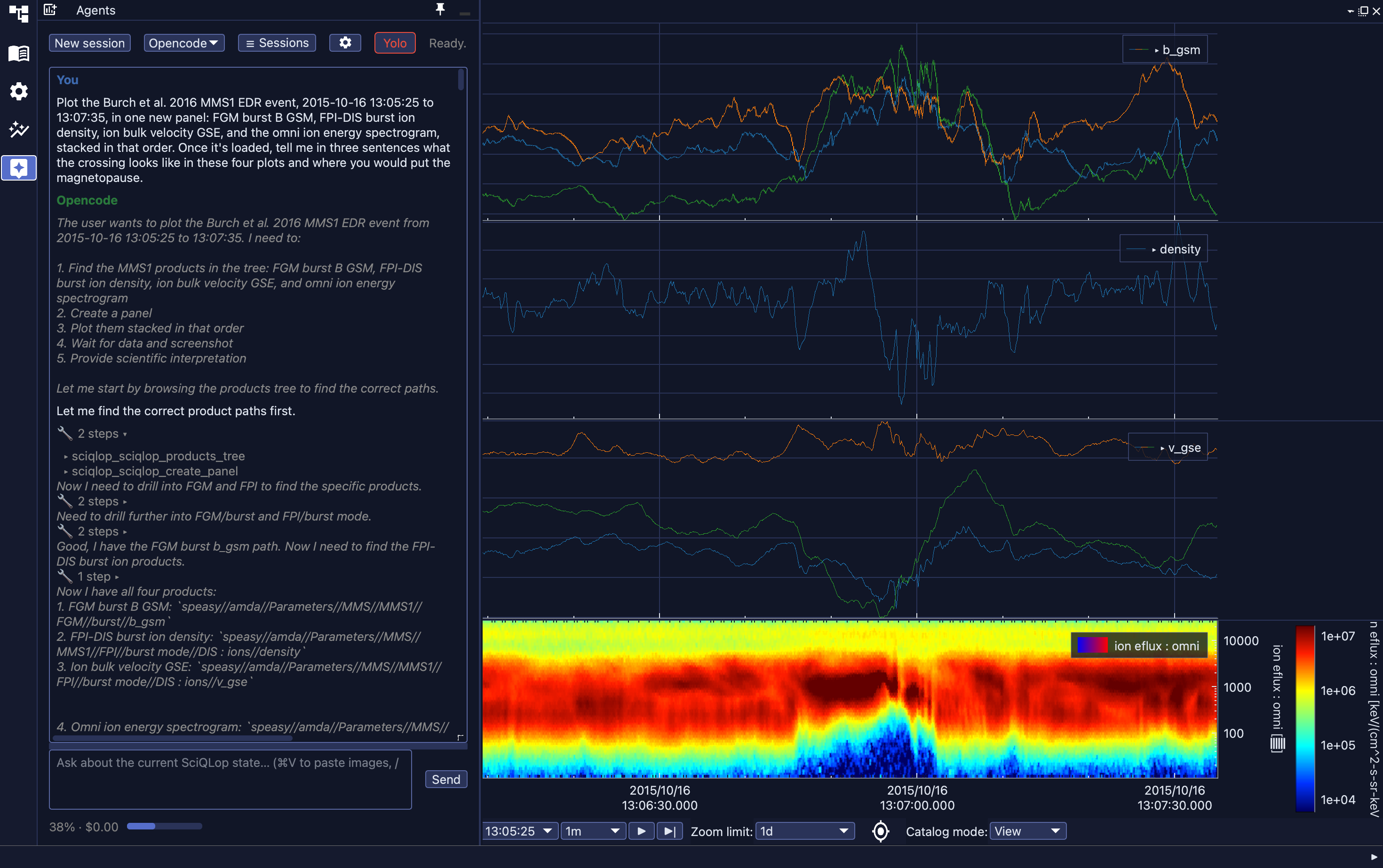

The agent dock mid-job. It plotted the panel on the right from a one-sentence request, then checked its own work with a screenshot tool before reporting.
Guided tours

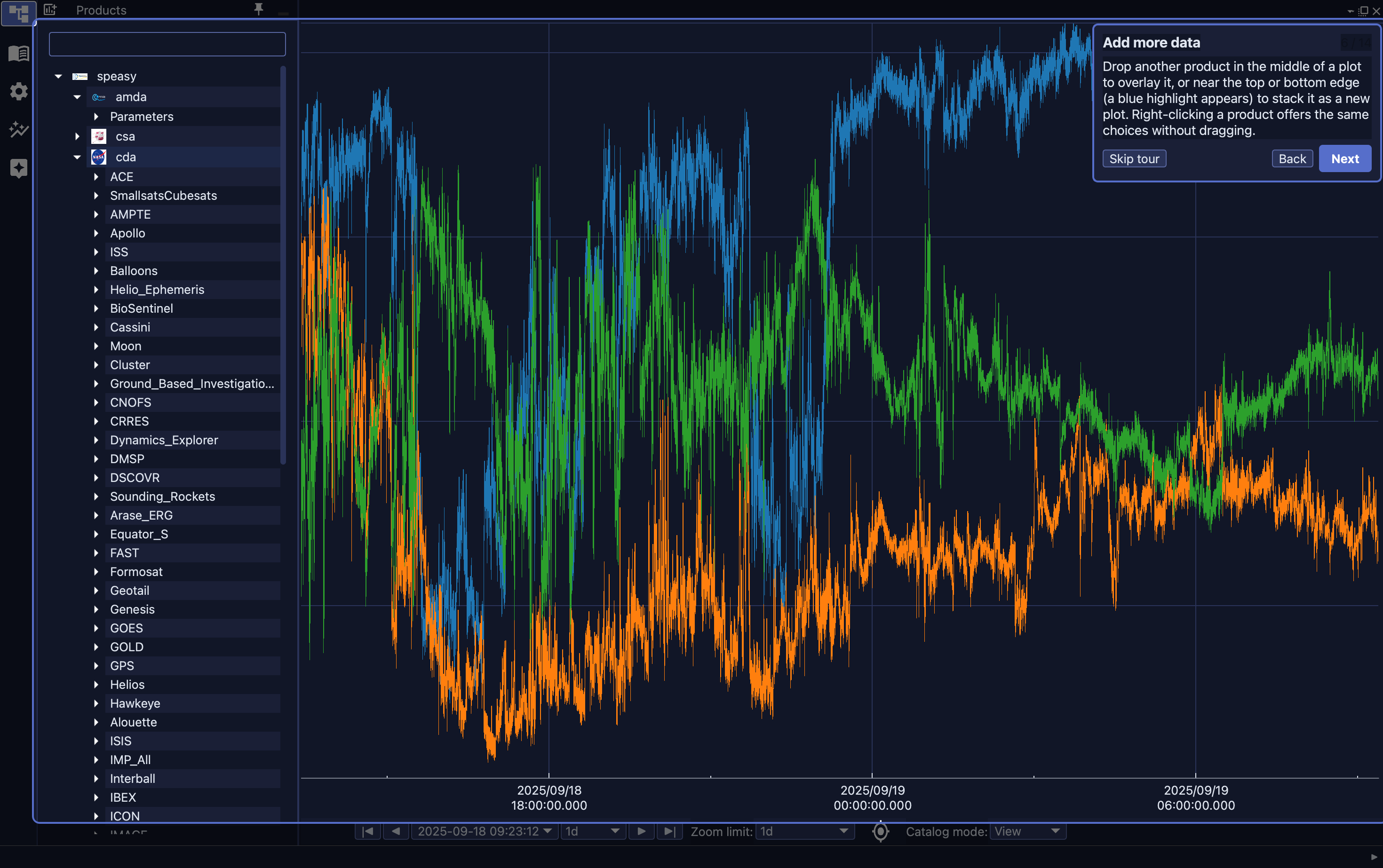

Coach marks walk new users through their first plot, over real content.
Find any product

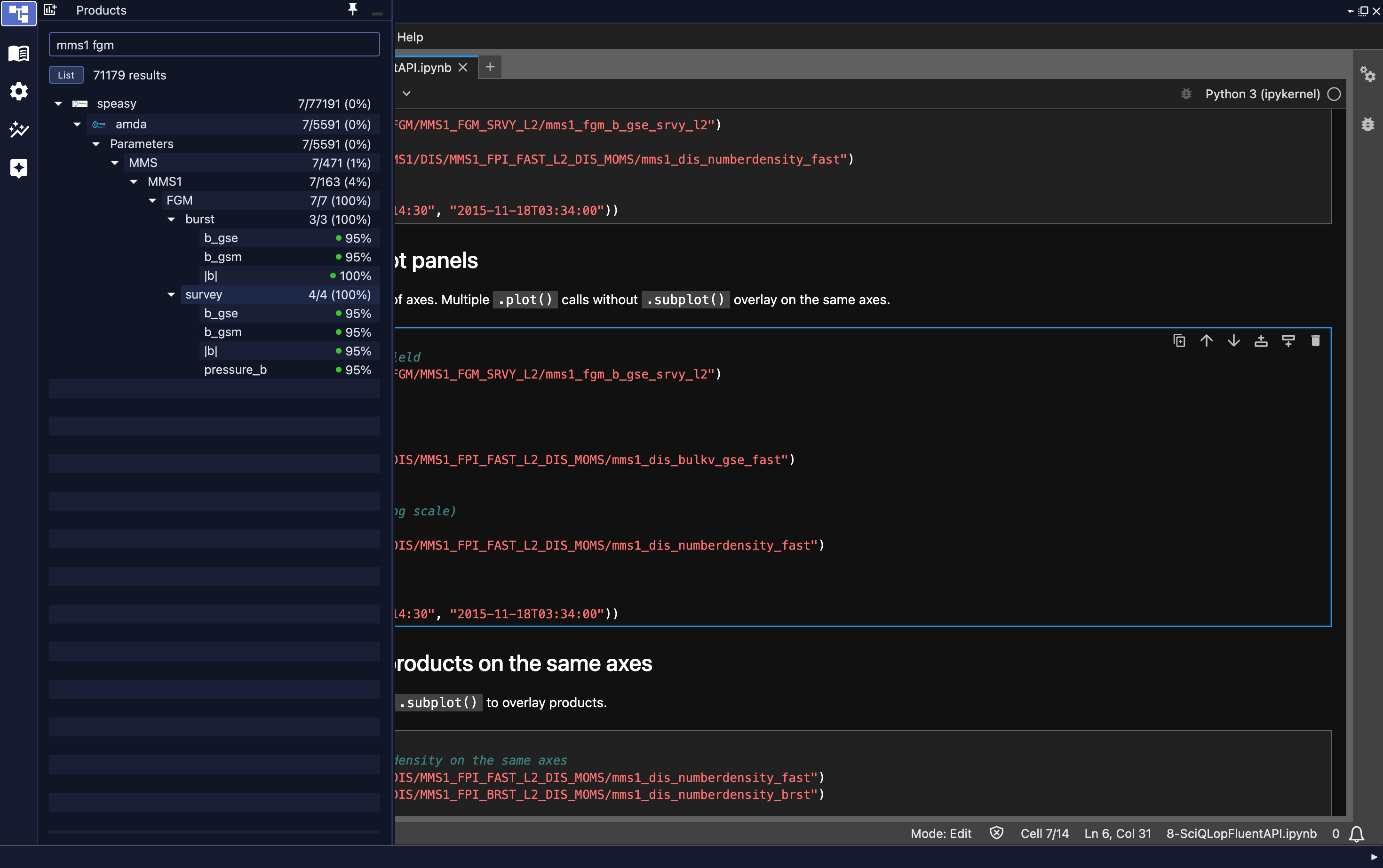

The sidebar smart search narrows the tree of tens of thousands of products as you type, with hit counts and data coverage per node.

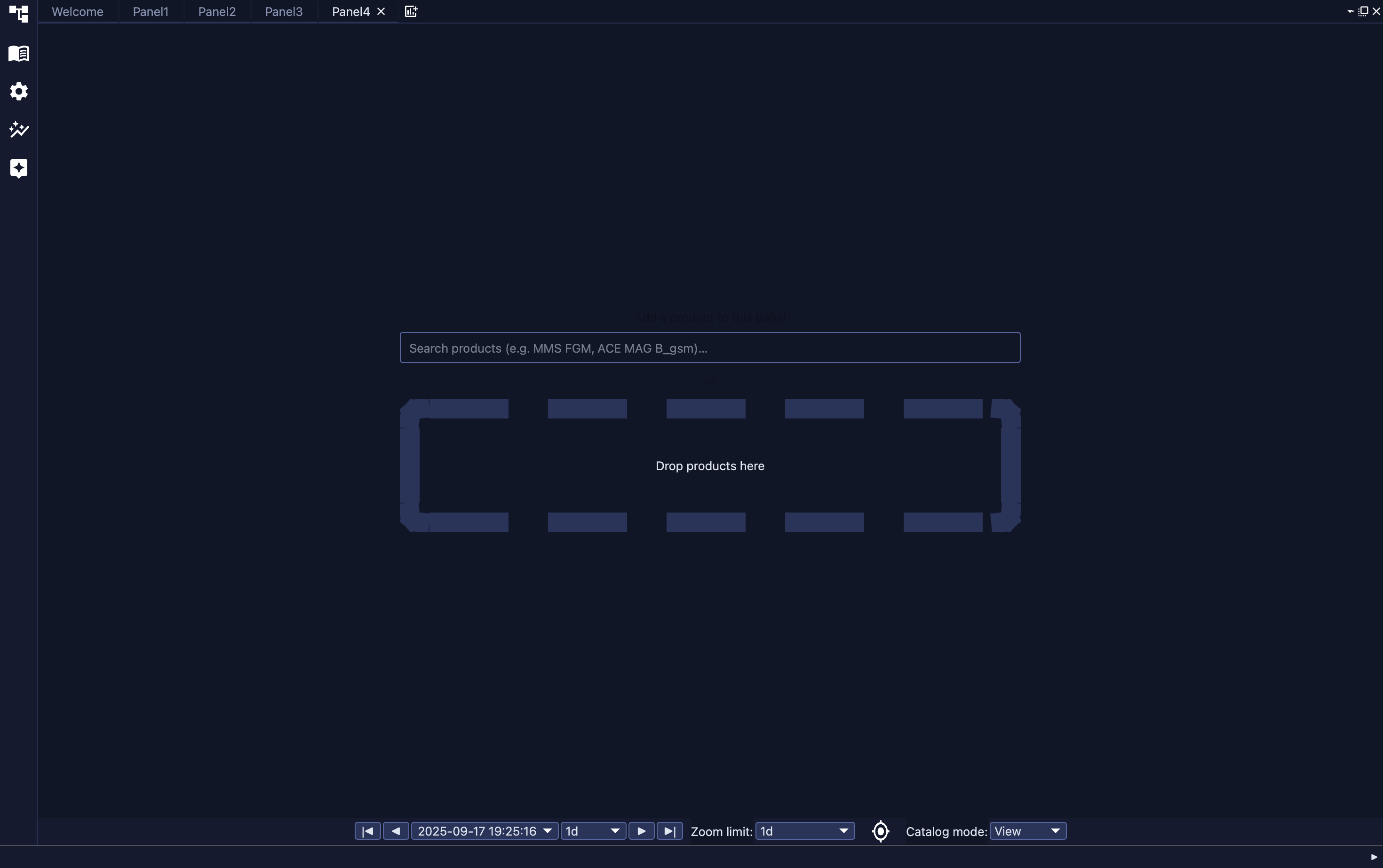

A new empty panel opens with a search box, or takes a drop.
